Lifting Robot (incl. Base AMR)





Enrich the load range, making transportation worry free




  • Based on the SRC controller, combined with SEER Robotics software RDS (Fleet Management System) and MWMS, effortlessly achieve various solutions efficiently.



  • An astonishing accuracy of ±5 mm matches the general positioning demands of various scenarios.



  • Worry-Free Battery Life: up to 12 hours for uninterrupted operation.



  • The modular design guarantees unparalleled reliability and stability and the maintenance becomes a breeze, enabling you to save significantly both time and money.

  • Obtained multiple CE certifications, guaranteeing a secure global journey.



  • Functional Safety Design: passed SGS TÜV SAAR functional safety certification.



  • Dual lasers, emergency stop button, and bumper trip sensors at the front and back for 360° protection.

  • Smaller size allows for a lower chassis height with the integrated climbing mechanism, lower environmental requirements, more coverage scenarios, and fewer site restrictions.



  • 360° rotation: unleash limitless flexibility for pick-up, drop-off, and handling.

  • An extensive range of vehicle types ensures a perfect fit for every need. Each product offers rich assemble options, allowing you to customize it according to your requirements.



  • Superior environmental adaptability: equipped with various navigation methods (SLAM, QR Code, and Laser Reflector) and supports the detection of human/object obstacles.



  • Rich levels of load capability can be selected to meet the requirements in any scenario.

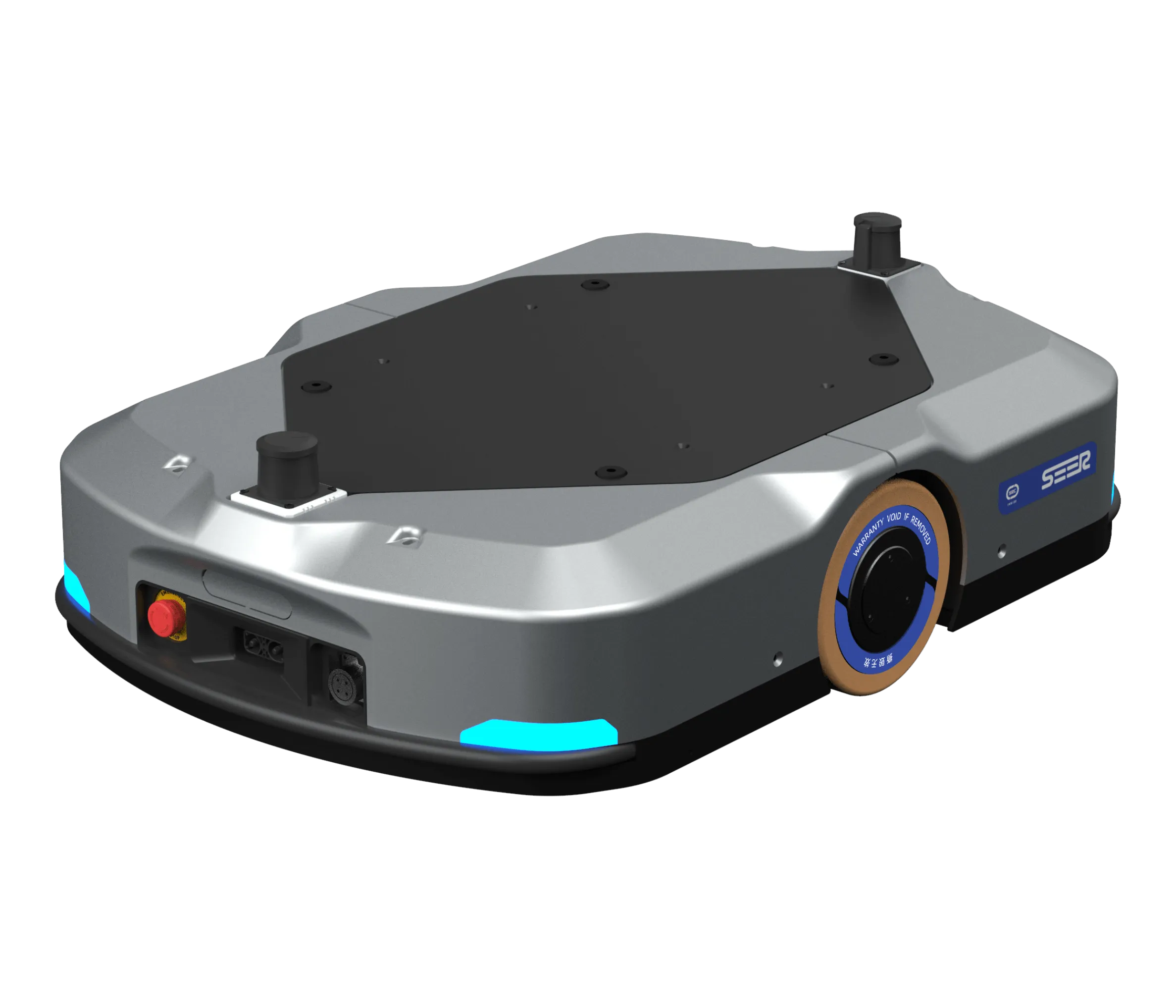

Base AMR

New Era of SLAM AutonomousTransportation

AMB-150

New Era of SLAM AutonomousTransportation

AMB-300

CE Certification, Safety Upgraded

AMB-300XS

Universal chassis, super cost-effective

AMB-CSW04-KJ



Base AMR Product Parameters

Product name AMB-150 AMB-300 AMB-300XS AMB-CSW04-KJ
Weight (with battery) 66kg 144kg 120kg 100kg
Maximum load capacity 150kg 300kg 300kg 400kg

L x W x H

800×560×200mm

 1000×700×200mm 842×582×302.5mm 810×545×228mm

Rotation diameter

840mm

 1040mm 972.6mm 840mm
Navigation type Laser SLAM
Chassis ground clearance 25mm 25mm 27mm 25mm

Navigation laser scanning height

 228mm（P+F） 215mm（H1） 185.43mm 200.5mm

Ambient temperature and humidity range

 TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation

Passability (slope / step / gap)

 ＜5%/5mm/10mm ＜5%/5mm/30mm

Minimum aisle width

 700mm 840mm 722mm 685mm
Navigation position accuracy ±5mm
Navigation angle accuracy ±0.5°

Driving speed

 ≤1.4m/s ≤1.5m/s
Battery specifications

48V/25Ah(lithium iron phosphate)

 48V/40Ah(lithium iron phosphate) 48V/40Ah(Ternary lithium) 51.2V/20Ah(lithium iron phosphate)
Comprehensive battery life 12h 8h

Charging time (10% to 80%)

 ≤1h ≤1.5h ≤2.5h ≤1h

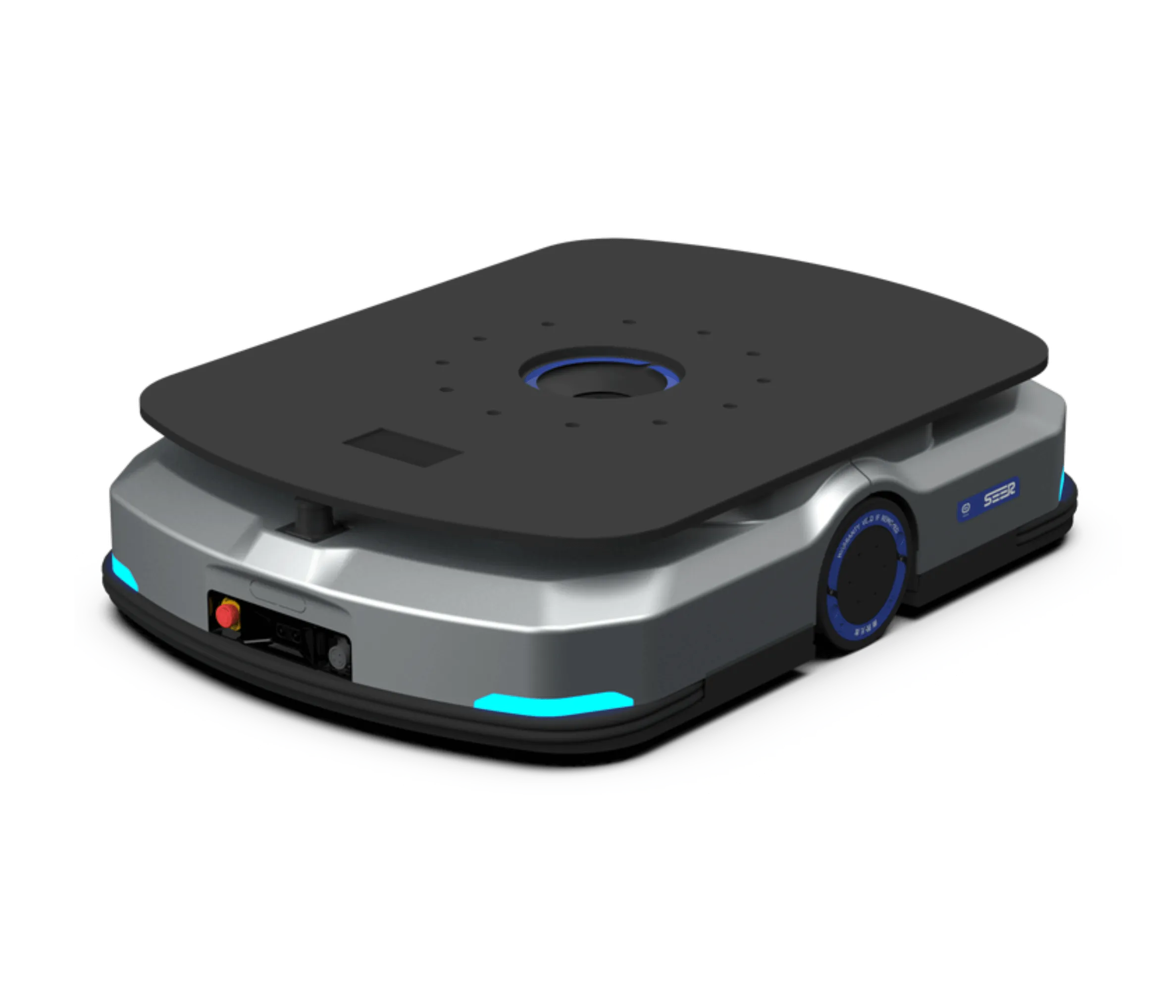

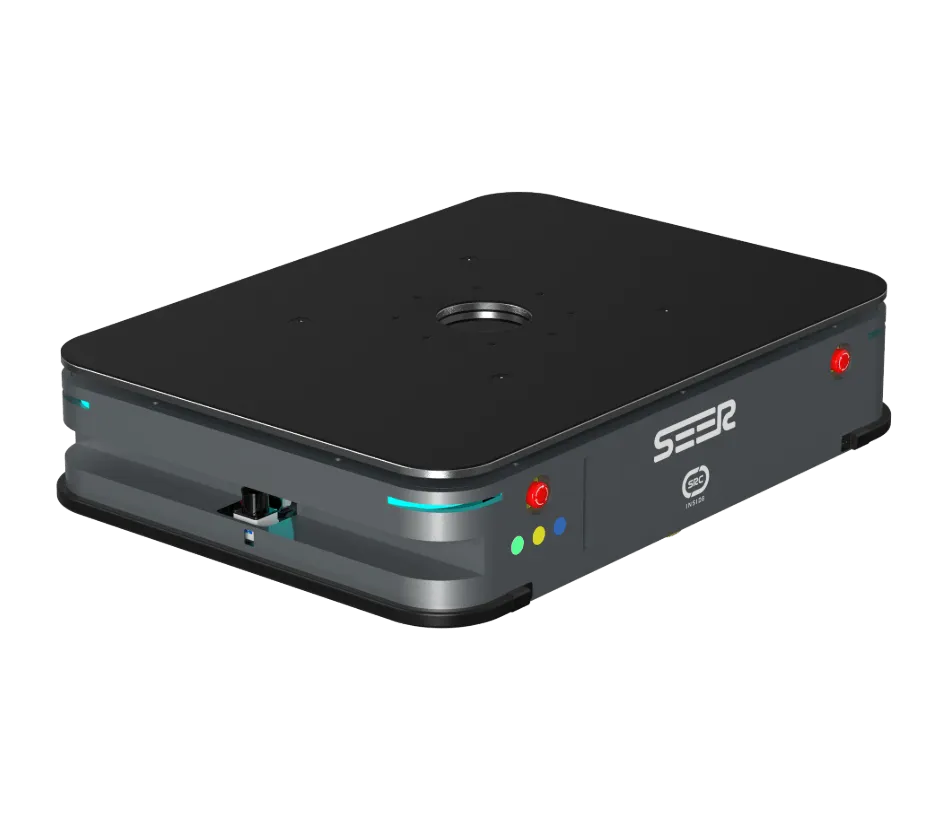

Lifting Robot

Laser SLAM Lifting Robot

AMB-1000JS & AMB-500JS

Laser SLAM Lifting Robot

SJV-SW600

Laser SLAM Lifting Robot

SJV-SW1500



Laser SLAM Lifting Robot

SJV-CSK04-KJ & SJV-CSL04-KJ

Laser SLAM Lifting Robot

SJV-CSK06-YF & SJV-CSL06-YF

Laser SLAM Lifting Robot

SJV-CSK10-BH & SJV-CSL10-BH

Laser SLAM Lifting Robot

SJV-CSK10-TT & SJV-CSL10-TT







Lifting Robot Product Parameters

Product name

AMB-1000JS

&

AMB-500JS

  SJV-SW600  SJV-SW1500

SJV-CSK04-KJ

&

SJV-CSL04-KJ

SJV-CSK06-YF

&

SJV-CSL06-YF

SJV-CSK10-BH

&

SJV-CSL10-BH

SJV-CSK10-TT

&

SJV-CSL10-TT
Weight (with battery) 265kg 170kg 250kg 130/120kg 133/130kg 245/235kg 187/177kg
Maximum load capacity 1000/500kg 600kg 1500kg 400kg 600kg 1000kg

L x W x H

1330×952×290mm

 950×650×250mm 1210×892×280mm 810×545×280mm
810×545×250mm		 950×650×250mm 1150×800×250mm 988×700×258mm

Rotation diameter

1460mm

 1015mm 1412mm 840mm 965mm 1220/610mm 1055/527.5mm
Navigation type Laser SLAM
Chassis ground clearance 30mm 25mm 30mm 25mm 25mm 20mm 24mm

Navigation laser scanning height

 175mm 194mm(H1) 123mm(H1) 200.5mm（H1） 195mm 209mm 208mm

Ambient temperature and humidity range

 TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation

Passability (slope / step / gap)

 ＜5%/5mm/10mm ＜5%/5mm/30mm ＜5%/5mm/30mm

Minimum aisle width

 1050mm 790mm 1000mm 685mm 790mm 940mm 840mm
Navigation position accuracy ±5mm
Navigation angle accuracy ±1° ±0.5° ±1° ±0.5°

Driving speed

 ≤1.5m/s ≤1.67m/s ≤1.5m/s
Battery specifications

48V/40Ah

(lithium iron phosphate)

48V/24Ah

(lithium iron phosphate)

48V/40Ah

(lithium iron phosphate)

51.2V/20Ah

(lithium iron phosphate)

51.2V/40Ah

(lithium iron phosphate)

51.2V/30Ah

(lithium iron phosphate)
Comprehensive battery life 7h 8h 6h 8h 7h

Charging time (10% to 80%)

 ≤2h ≤1h ≤1.5h
