ET-Series



Large FOV outdoor 3D camera

The product has a wide field of view and depth of field, making it suitable for typical size stacking and positioning scenes of medium and large workpieces. It offers high positioning accuracy and strong environmental adaptability, making it suitable for outdoor use.

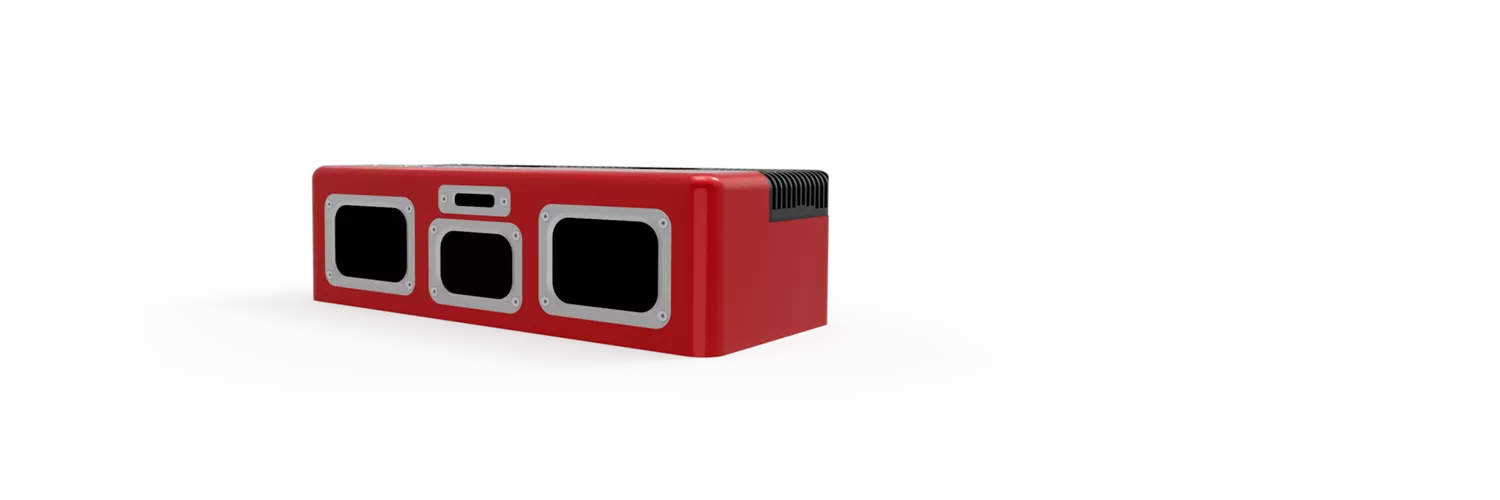

AT-S1000-01A-ET


Medium FOV outdoor 3D camera

The product has a small to medium field of view and depth of field. Its compact size makes it suitable for mounting on the end-axis of the robotic arm EYE-IN-HAND. This can be used in outdoor environments to scan the target workpiece at close range and achieve high-precision positioning and guidance.

AT-S1000-04A-ET





ET-Series Advantages



Resistant to Bright Light Interference

Fearless of all outdoor sunlight interference, within 110000Lux illumination can generate high-quality point cloud data.



Heat-resistant

By adopting heat pump technology, we can effectively solve the problem of product heat dissipation without increasing the product's external dimensions. This will raise the product's stable working temperature to 55℃.


Low-temperature Resistant

Resolve the issue of lens fogging at low temperatures in optical products and extend the stable working temperature to -20℃.



High Protection

The product features a three-proof design with an IP67 protection rating, providing excellent waterproofing, salt spray resistance, and anti-mold capabilities.



Point Cloud Effects







AT-S1000-01A-ET  Specifcations



Calibration distance(mm) 1500 2000 2500
Working distance(mm) 1050 1500 1950 1400 2000 2600 1750 2500 3250
FOV(mm) 1140×800 1520×1120 1800×1450 1480×1070 2030×1510 2470×1950 1840×1340 2540×1900 3130×2460
Baseline(mm) 530 530 530
VDI/VDE accuracy(mm)* 0.273@1500 0.510@2000 0.600@2500
Resolution(px) 1920×1200 1920×1200 1920×1200
Typical capture time(s) 3.5 3.5 3.5
Laser class Class 3R Class 3R Class 3R
Dimensions(LxWxH,mm) 660×150×110 660×150×110 660×150×110
Weight(kg) 8.7 8.7 8.7
Connector(IPC) RS232 USB3.0 RS232 USB3.0 RS232 USB3.0
Output result 3D coordinates and posture information X,Y,Z,Rx,Ry,Rz 3D coordinates and posture information X,Y,Z,Rx,Ry,Rz 3D coordinates and posture information X,Y,Z,Rx,Ry,Rz
Operation temperature(℃) -20~55 -20~55 -20~55
Storage temperature(℃) -20~70 -20~70 -20~70
Operation humidity 20%~90%RH(no condensation) 20%~90%RH(no condensation) 20%~90%RH(no condensation)
IP rating IP67 IP67 IP67
Illuminance(Lux) 100000 100000 100000
Power voltage DC 24V 20A DC 24V 20A DC 24V 20A
Power consumption(typical, W) 11 11 11
Power consumption(max, W) 120 120 120
Built-in fill light** √ √ √
Cooling method Proactive Proactive Proactive
Certification CE、FCC、VCCI CE、FCC、VCCI CE、FCC、VCCI

*Based on VDI/VDE 2634 Part II, standard deviation at 3σ.

**The icon '√' indicates that the product has this parameter, '-' indicates that it does not have this parameter.





Communications Support



The ALSONTECH 3D vision system supports popular robot and PLC brands available in the market.
It can also facilitate communication through various methods such as TCP, UDP, MODBUSTCP, PROFINET, MOTOPLUS, and more.
